2PC Stainless Steel 316 Ball Valves 1000WOG 316 Ball Valves
Function Description:
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Application:
Applicable Temperature: -20ºC ~ 150 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: 1000WOG/2000WOG
Size Range: 1/4" ~ 4"(DN8-DN100)
Main Material:
| Descriptions: | |
| Threaded Ends: | ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228 |
| Testing: | API 598 |
| Material: | ASTM A351 CF8/304,CF8M/316,CF3/304L,CF3M/316L |
| | ASTM A216 WCB |
| Sizes: | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2",2-1/2" ,3" ,4" |
| Working pressure: | 1000PSI/PN63 |
| Working pressure: | -20 ~ 180°C (RPTFE), -20 ~300 °C (PPL) |
| Working medium: | Water,oil,gas,acid,steam,ect |
Cangzhou Junxi International Trade Co., Ltd.
Our company produce and export all kinds of carbon steel pipe fittings,Seamless Pipe Fittings, Our city Cang Zhou city is the hometown of carbon steel pipe fittings. We have exported to many countries, such as, Russia, Egypt Malaysia, India, Turkey, Indonesia, Jordan etc.
About the pipe fitting machine, we have different type for every machine.We have hot forming elbow machine, cold forming elbow machine, cold forming tee machine, beveling machine, shot blasting machine, etc.. Machine guarantee is one year. If our clients machine has problem, our after

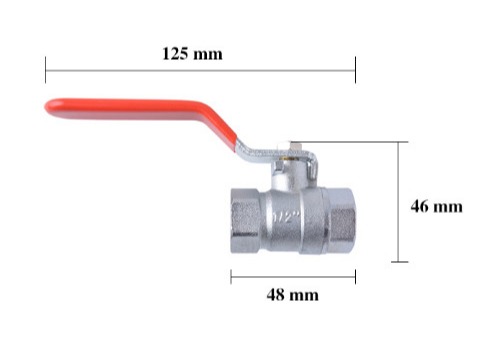

Full flow Female BSP x Female BSP brass ball valves (brass ball & stem) fitted with Iron lever handle are used for a variety of applications including oil & petroleum, and water. They are steam rated with PTFE stem packing. Pressure ratings are 25 bar/362.5 psi). EN13828 CE ACS(1101) approval. Ball & stem nickel-then-chrome plated for smooth operation.
Advantages:
1.Simple structure, small volume, light weight.
2.Small fluid resistance, full diameter ball valve basically no flow resistance.
3.Tight and reliable.It has two sealing surface, and the sealing surface material of the ball valve is widely used in a variety of plastics, good tightness, and can achieve complete sealing.It has also been widely used in vacuum systems.
4.Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90o, convenient for remote control.
5.Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
6.When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium. When the medium passes, it will
